Pyramid Dollar Bill Acceptor Validator, Upstacker, 500 Bill, 120 VAC, 7400-UB3-USA


Product Code: 54824
Condition: New
Brand: Pyramid Technologies
Lead Time (Days): 1
Estimated Arrival: 4 - 7 Business Days
Quantity Available: Only 1 Left!
Stock Status: In Stock

Reset Selected Options

Pyramid Dollar Bill Acceptor Validator, Upstacker, 500 Bill, 120 VAC, 7400-UB3-USA

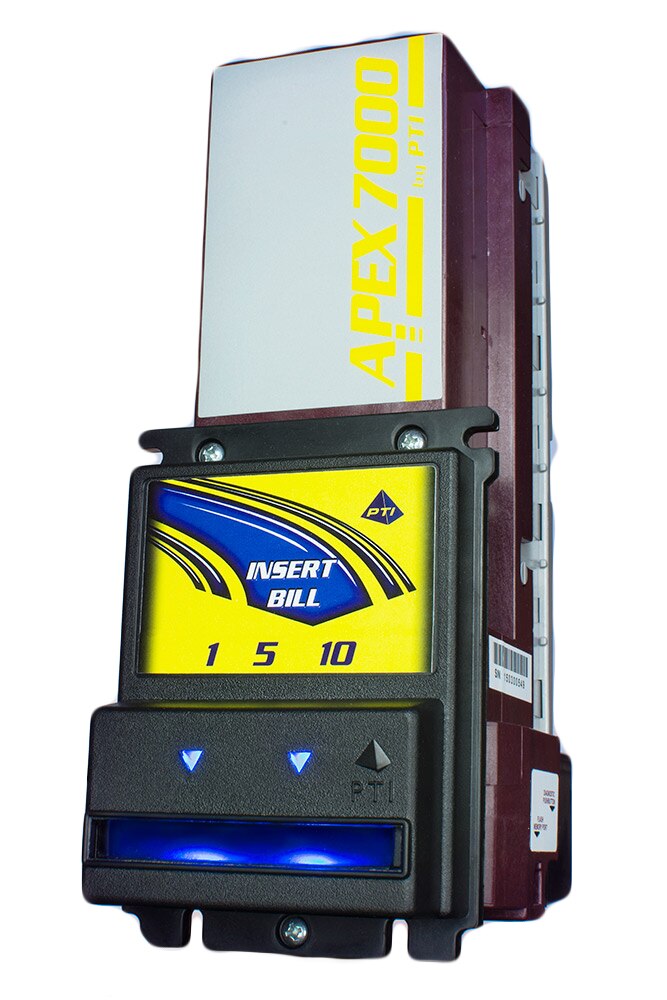

Introducing the Apex 7000, a state-of-the-art bill validator designed for today's automatic equipment operator, offering a perfect blend of quality, confidence, and value. With a robust set of features and accessories, this machine is your go-to solution for seamless currency validation.


  1. Configurable DIP Switches: The Apex 7000 provides a high level of flexibility through easily configurable DIP switches, ensuring adaptability to diverse operational needs.
  2. Automatic Self-Calibration: The bill validator boasts an automatic self-calibration feature, eliminating the need for user intervention and ensuring precise and accurate currency validation.
  3. Accessories and Options: The package includes all the essential accessories and options required to efficiently carry out the job, making it a comprehensive solution for your currency validation needs.
  4. Reliability: With over 15 years in the field, the Apex 7000 sets the benchmark for stability and resilience, offering unmatched reliability for continuous, trouble-free operation.
  5. Flexibility in Configuration: The device supports both simple DIP switch and PC configurations, providing operators with the flexibility to tailor settings to their specific requirements. It is also flash updateable for easy software upgrades.
  6. Wide Bill Acceptance: Bills up to 72 mm wide are accepted, accommodating various currency sizes and types.
  7. Power Options: The Apex 7000 can operate on a standard 12VDC or an optional 120VAC internal power supply, giving you the flexibility to choose the power source that suits your setup.
  8. Stackerless Version: For streamlined operation, a stackerless version is available, offering a lighter and more compact alternative.
  9. Security: The bill validator prioritizes security with the highest measures against fraudulent bills, including dual-stage optical anti-stringing technology.
  10. Multiple Interfaces: The Apex 7000 supports multiple interfaces, enhancing compatibility with different systems and setups.

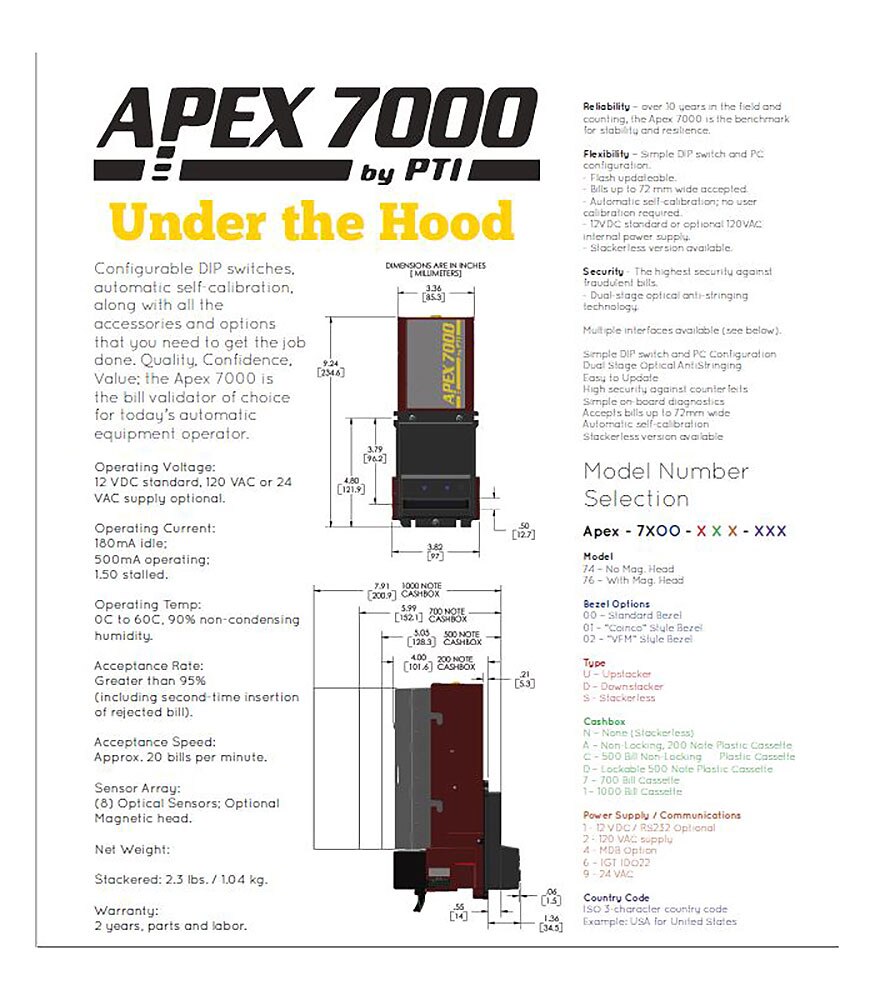

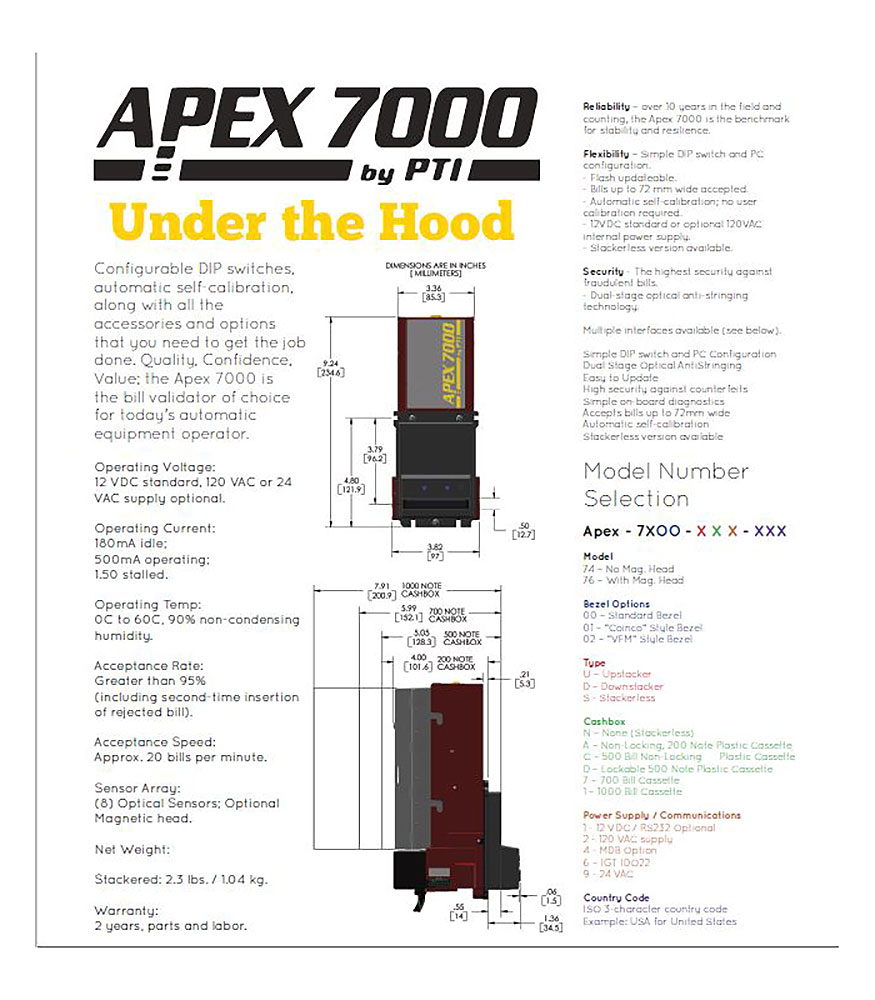

Technical Specifications:

  • Operating Voltage: 12VDC standard, optional 120VAC supply.
  • Operating Current: 180mA idle; 500mA operating; 1.50 stalled.
  • Operating Temperature: 0°C to 60°C, 90% non-condensing humidity.
  • Acceptance Rate: Greater than 95%, including second-time insertion of rejected bills.
  • Acceptance Speed: Approximately 20 bills per minute.
  • Sensor Array: (8) Optical Sensors; Optional Magnetic Head.
  • Net Weight: Stackerless: 2.0 lbs. / 0.91 kg, Stackered: 3.4 lbs. / 1.54 kg.

Warranty: 2 years, parts, and labor.

Choose the Apex 7000 for unmatched performance, reliability, and security in currency validation, making it the preferred choice for today's automatic equipment operators.

For your reference:

Model Number Selection
Apex - 7X00 - X X X - XXX

Model 7X00
74 – No Mag. Head
76 – With Mag. Head

Bezel Options
00 – Standard Bezel
01 – “Coinco” Style Bezel

U – Upstacker
D – Downstacker
S - Stackerless

N – None (Stackerless)
A – Non-Locking, 200 Note Plastic Cassette
B – 500 Bill Non-Locking Plastic Cassette
7 – 700 Bill Cassette
1 – 1000 Bill Cassette

Power Supply
1 - 12 VDC supply
3- 120 VAC supply
4 - MDB Option

Country Code
ISO 3-character country code
Example: USA for United States

Specifications below:
Weight (lbs.): 2.75
Shipping Dimensions: 15" x 15" x 6"
Voltage:12 VDC
Coin Operated?: Coin-Operated Only
