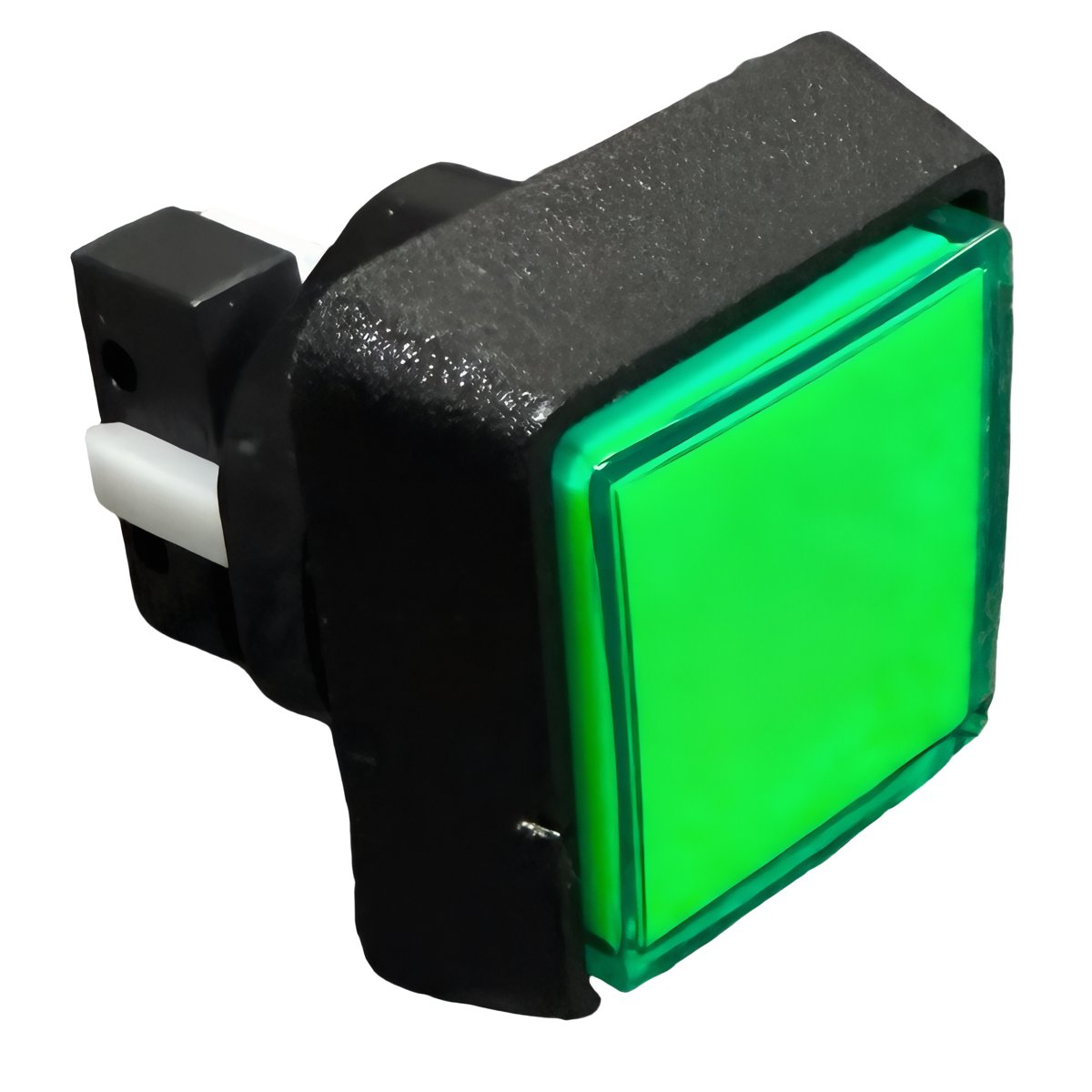

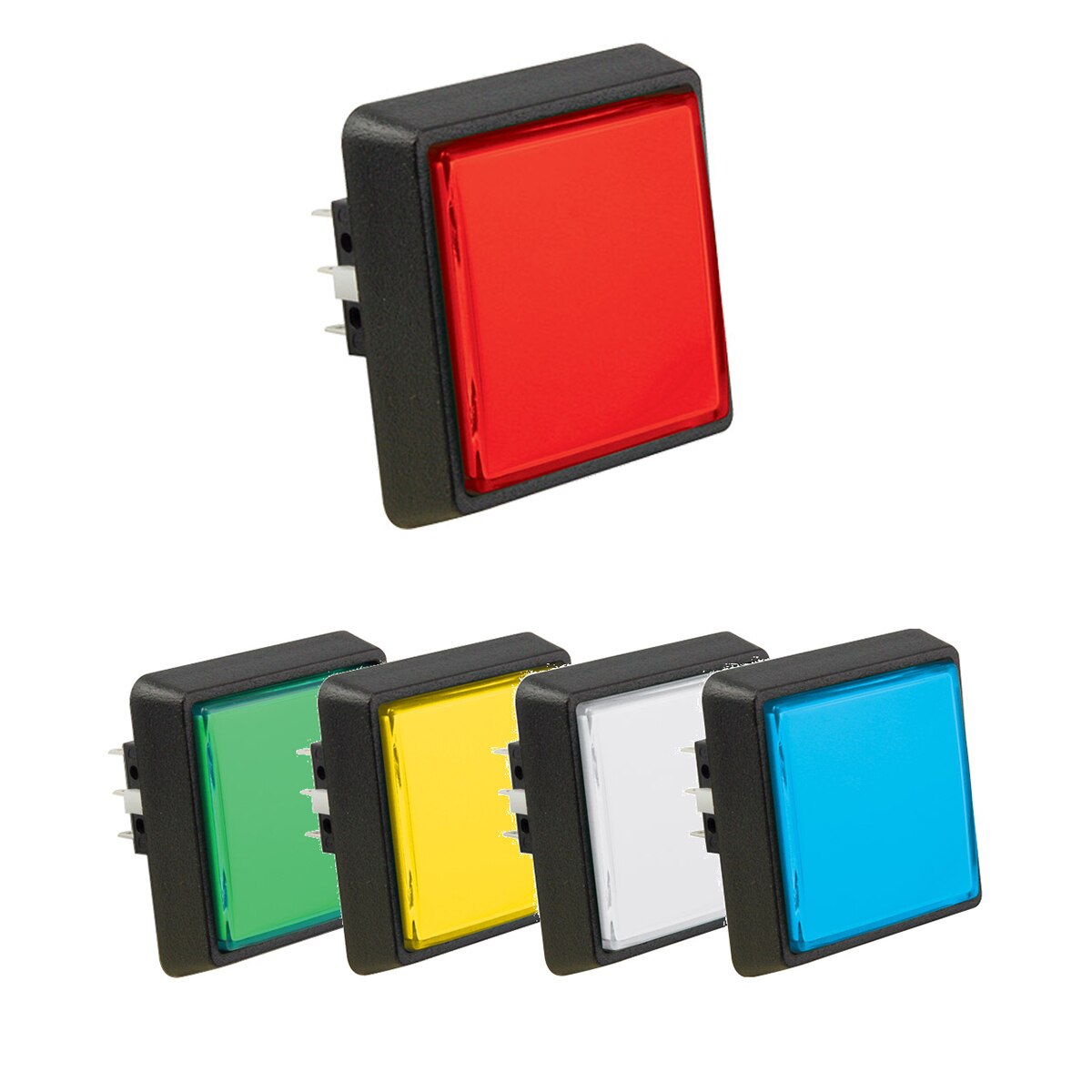

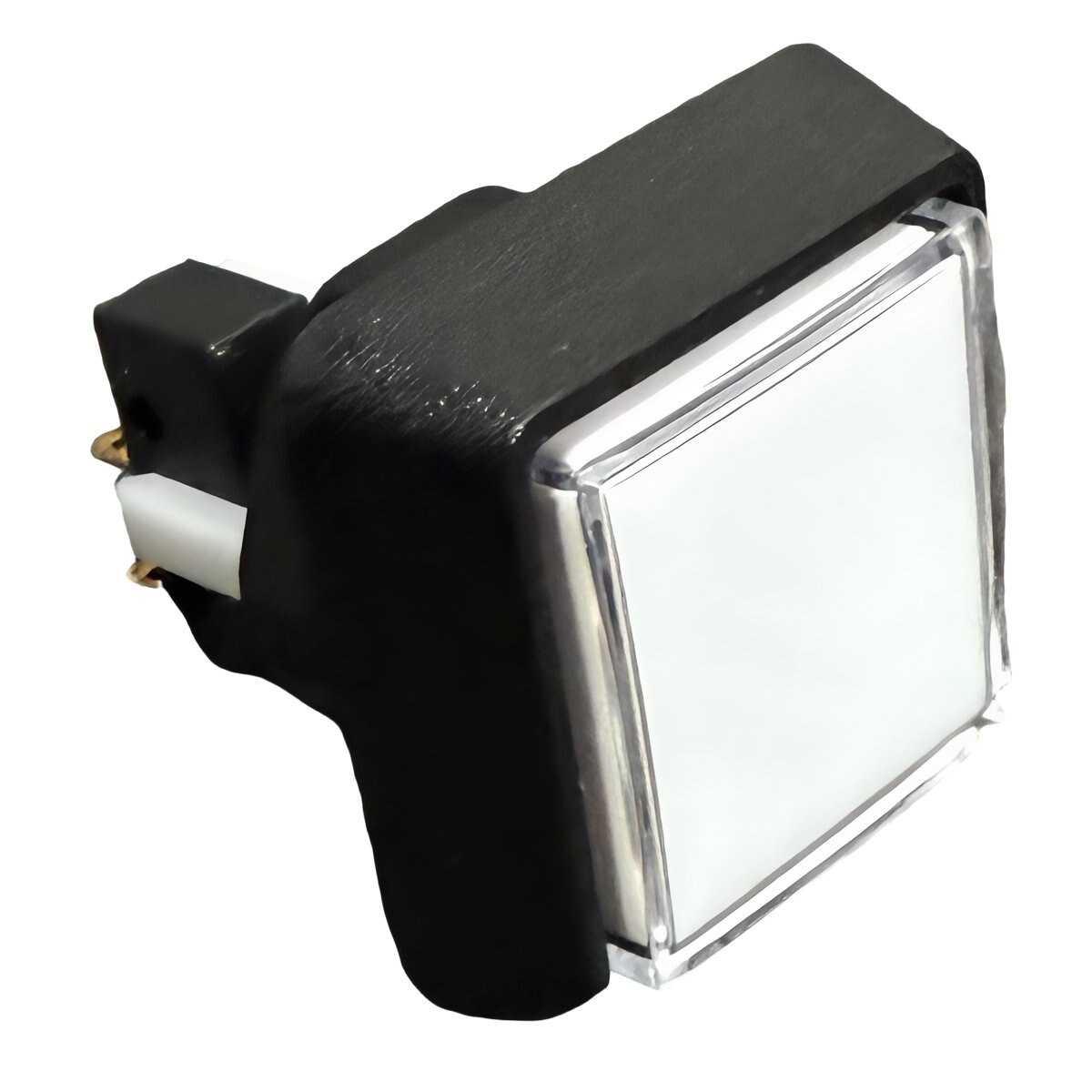

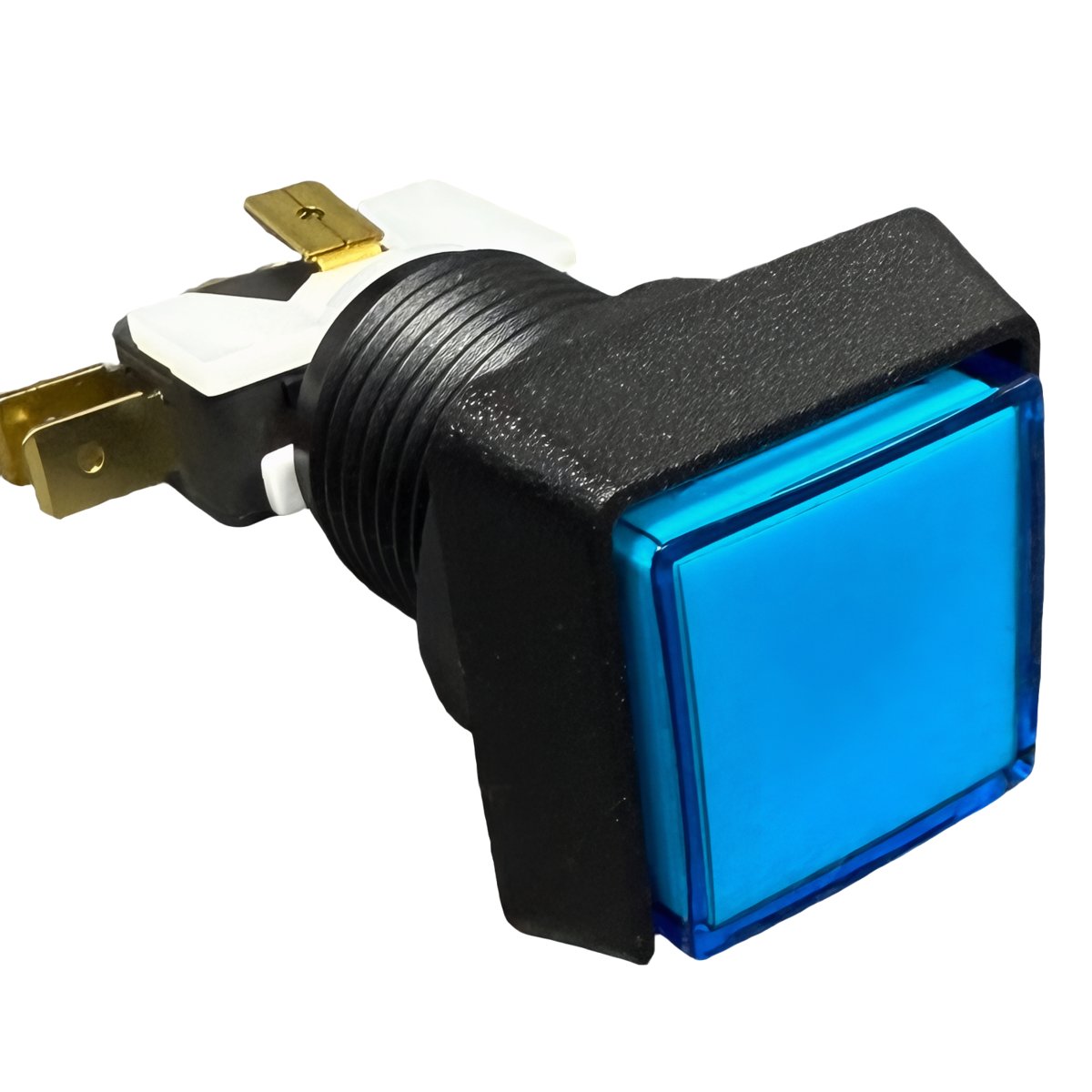

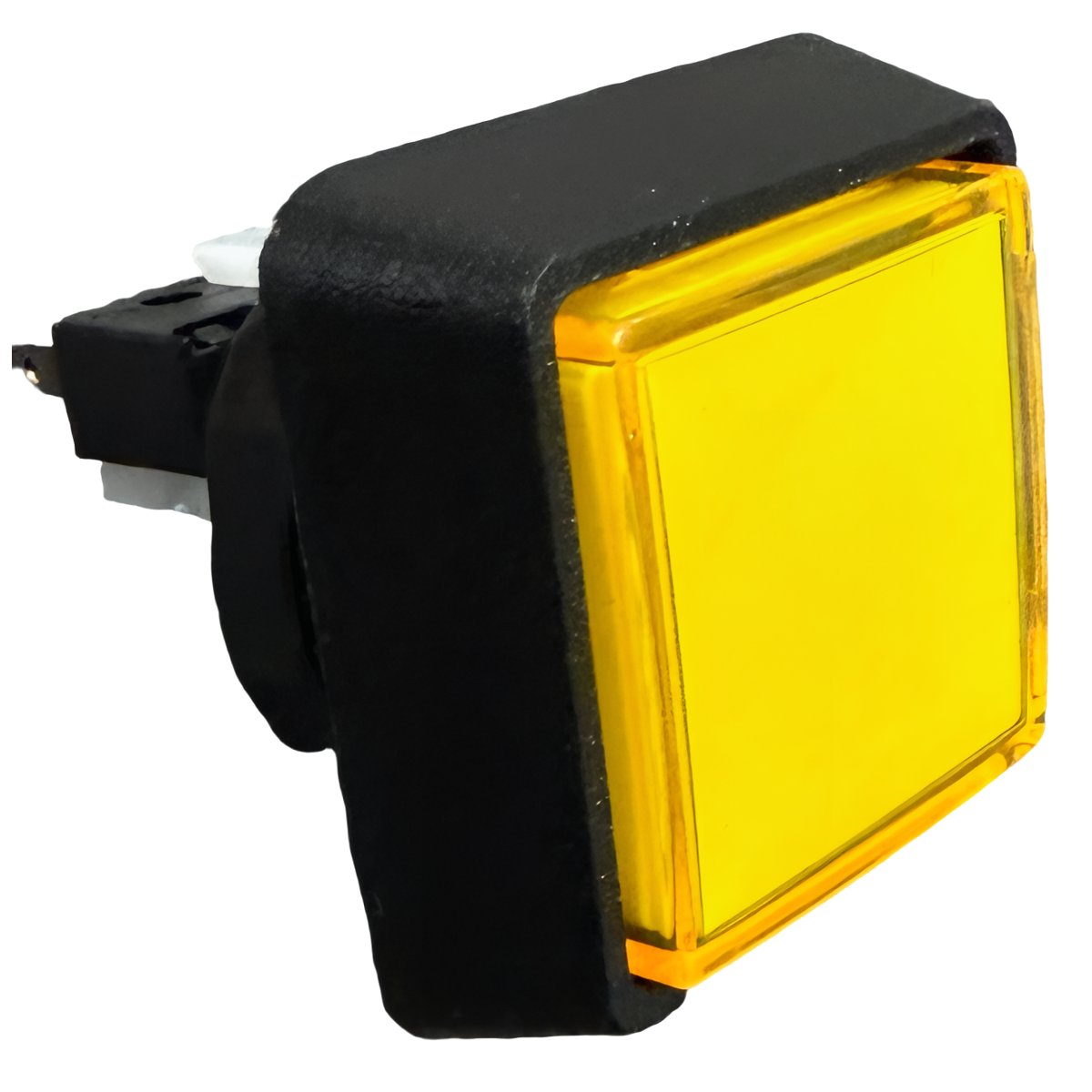

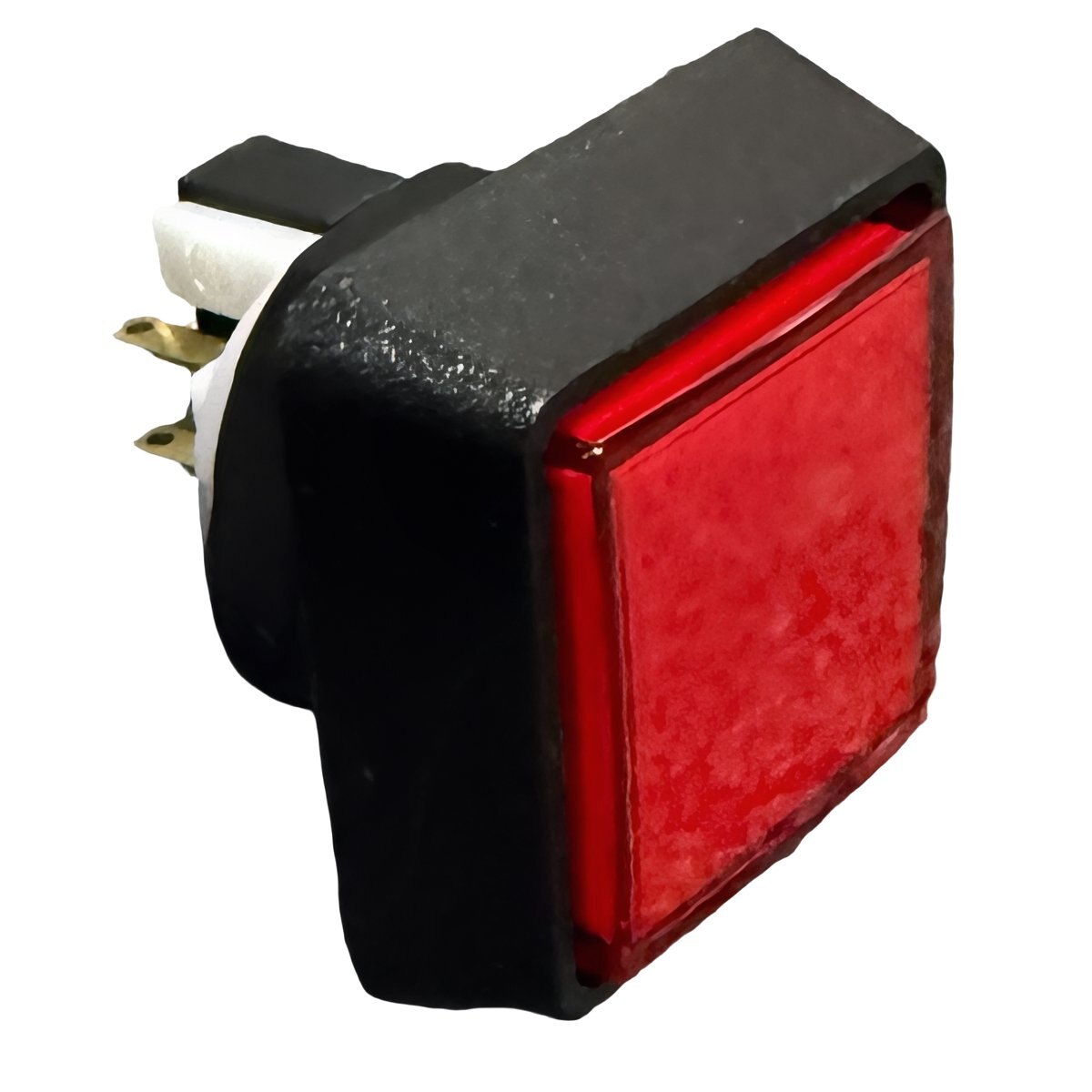

Push Button Small Square, Illuminated with Microswitch - 75V-0004-4
Push Button Small Square, Illuminated with Microswitch - 75V-0004-4
- Standard illuminated pushbutton fitted with a subminiature switch with gold contacts and .110 terminals.
- Subminiature microswitch provides additional clearance room under control panel.
- Designed to resist spills and sticking.
- High reliability and long life, tested to 10,000,000 cycles.
- Fitted standard with #73, 14V wedge based lamp.
- Fits wood or metal control panels.
- Posi-Lock lampholder
Specifications below:
Length: 1.75
Width: 1.5
Height: 1.5
Weight (lbs.): 0.07
Length: 1.75
Width: 1.5
Height: 1.5
Weight (lbs.): 0.07
Game Room Guys sells only the highest quality products. This manufacturer offers a 60 day limited warranty. If you have any questions, concerns, or would like more details about this warranty, please give us a call and we will be happy to help.
