Momentary Switch Lock KA2341 Spade Terminal with 2 keys

$14.79
Product Code: 21975
UPC Code: 840639133577
Condition: New
Brand: MEI Lock
Lead Time (Days): 1
Estimated Arrival: 4 - 7 Business Days
Quantity Available: Only 1 Left!
Stock Status: In Stock
Reset Selected Options (Show All Images)

Momentary Switch Lock

Back

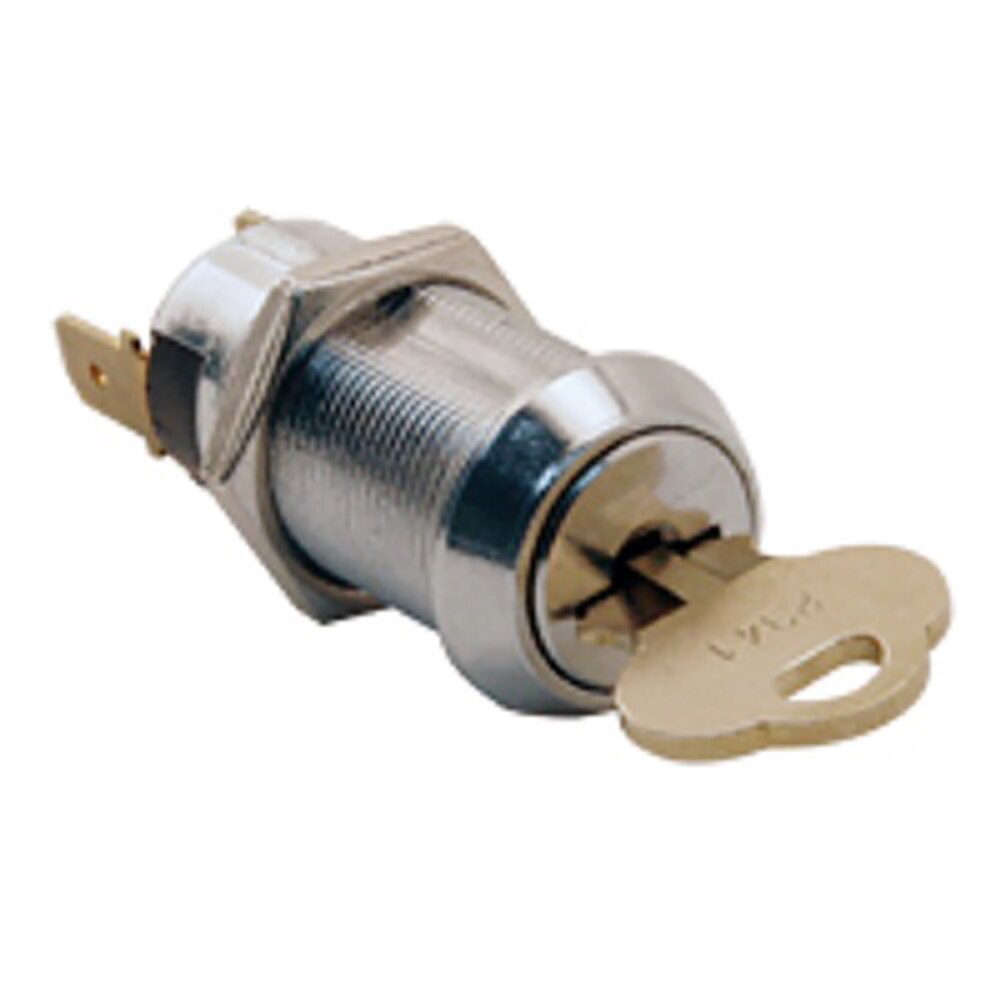

Momentary Switch Lock KA2341 Spade Terminal with 2 keys

  • Key is removable ONLY in the OFF position
  • When Key is turned to ON Position and released it will return to OFF Position
  • Double bitted keys are keyed alike #2341 with 2 keys per lock
  • .250" Spade terminals
  • Barrel length: 1.0635"
  • Overall length: 2.03"
  • 4 amps/125VAC, 2 amps/250VAC
  • Current Rating: 4A 125VAC, 2A 250VAC
  • Contact Resistance: 10 Milli-Ohms Max
  • Insulation Resistance: 500 Meg-Ohms Min.
  • Dielectric Strength: 1500VAC 1 Minute
Specifications below:
Length: 2.03
Width: 7.5
Height: 1
Weight (lbs.): 0.15
Shipping Dimensions: 9.5" x 7.5" x 1"
