Medium Rectangular Video Lottery Terminal Pushbutton with Microswitch

$18.89
Product Code: 65452
UPC Code: 840639168388
Condition: New
Brand: Suzo-Happ
Reset Selected Options
Back

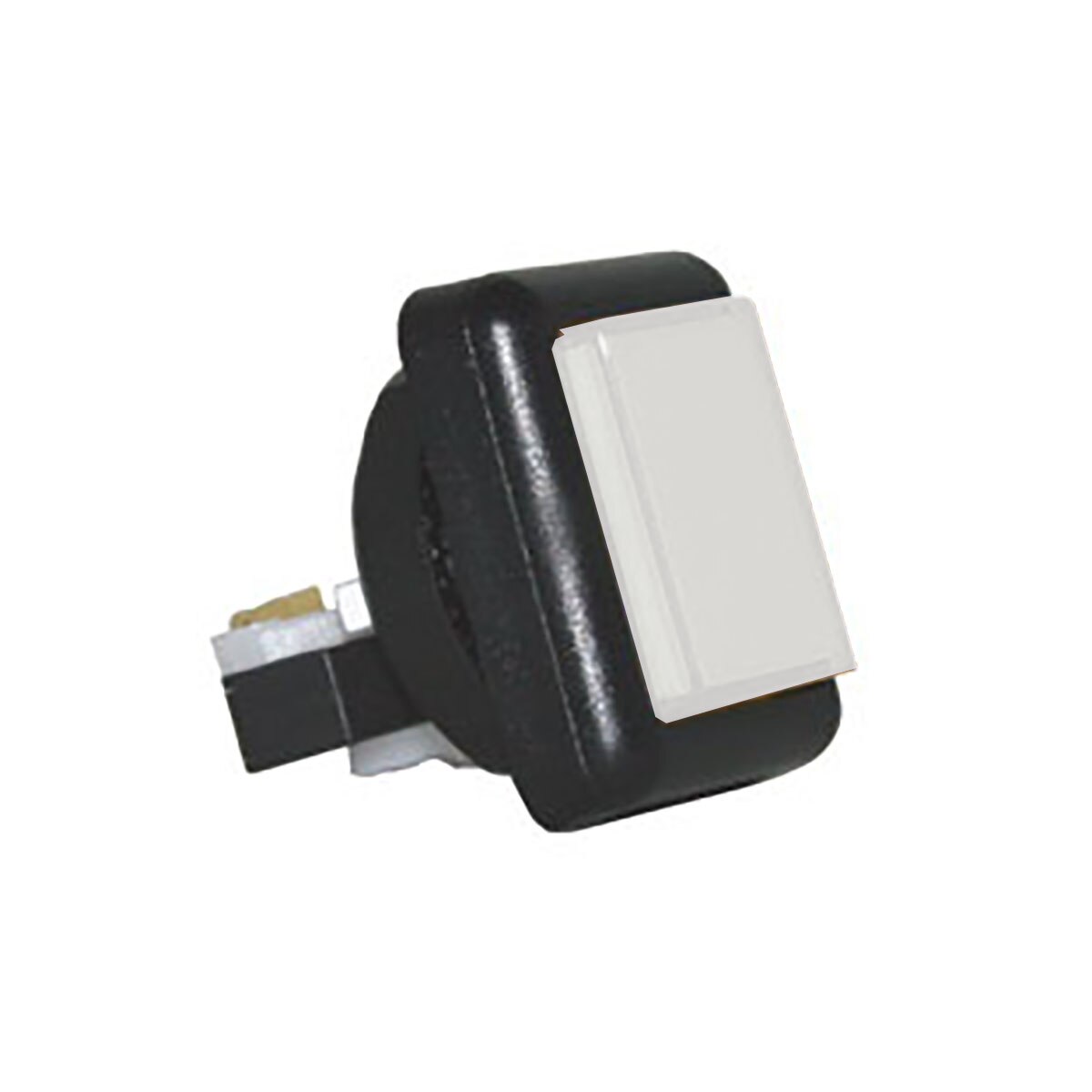

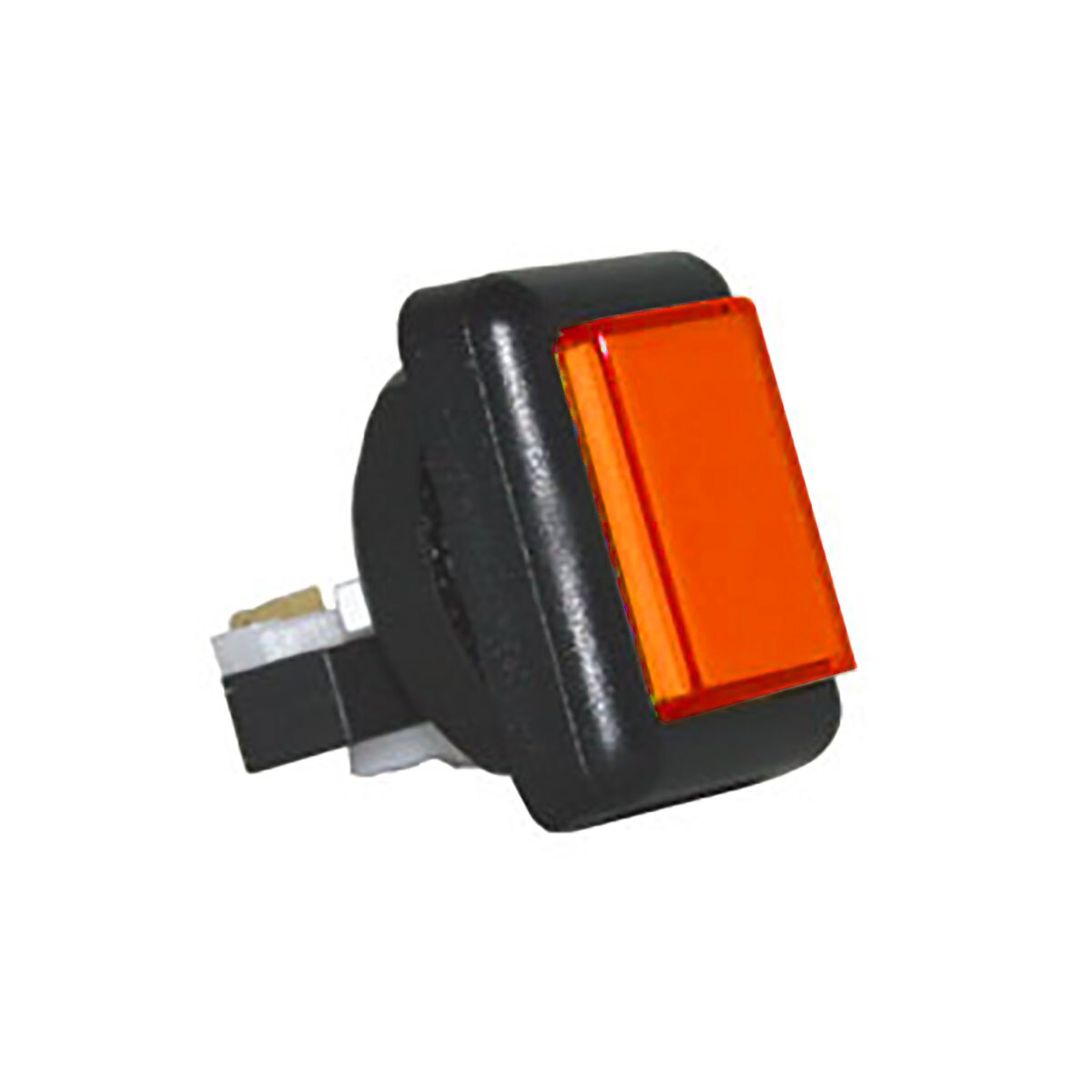

Medium Rectangular Video Lottery Terminal Pushbutton with Microswitch

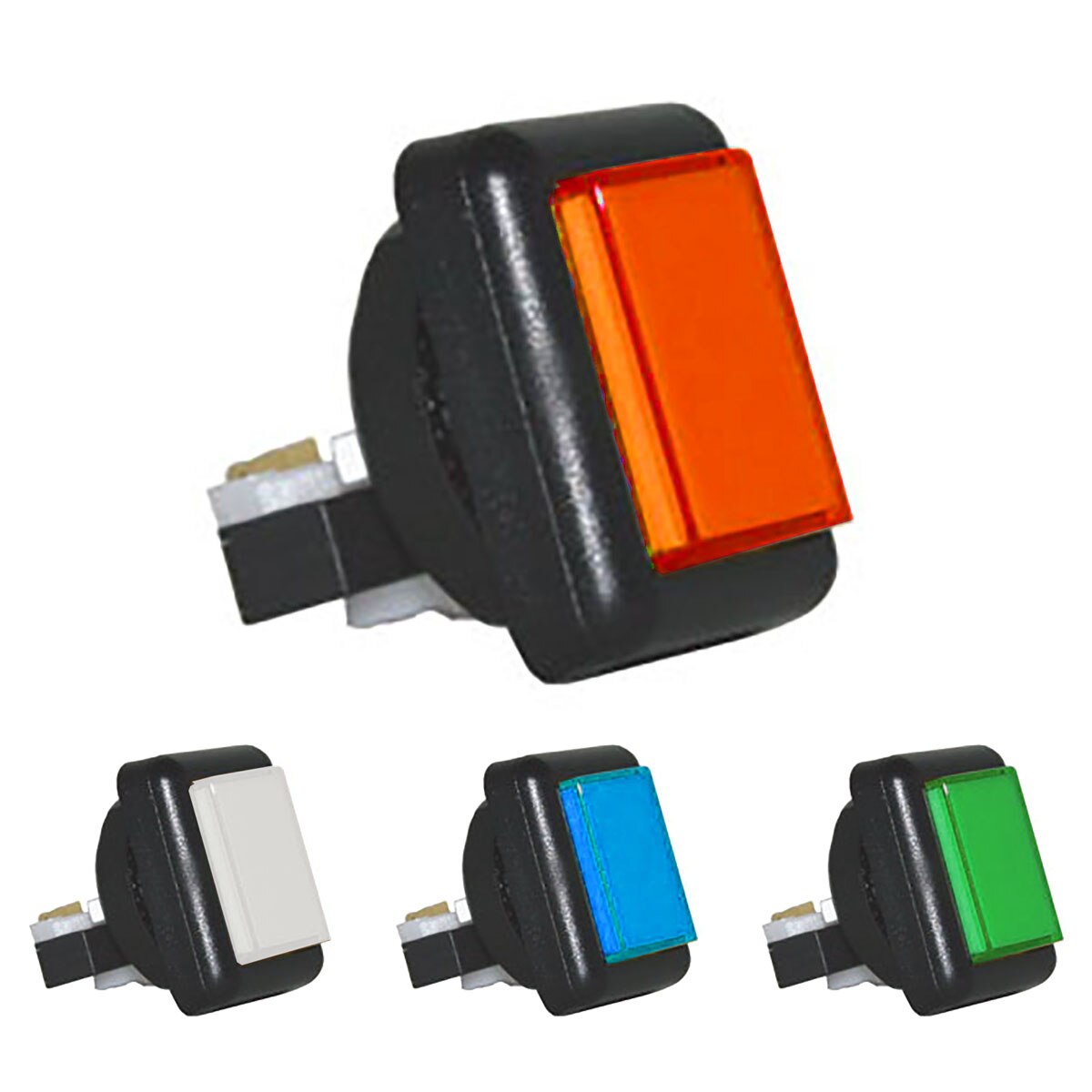

*Please Choose Your Button Color.*

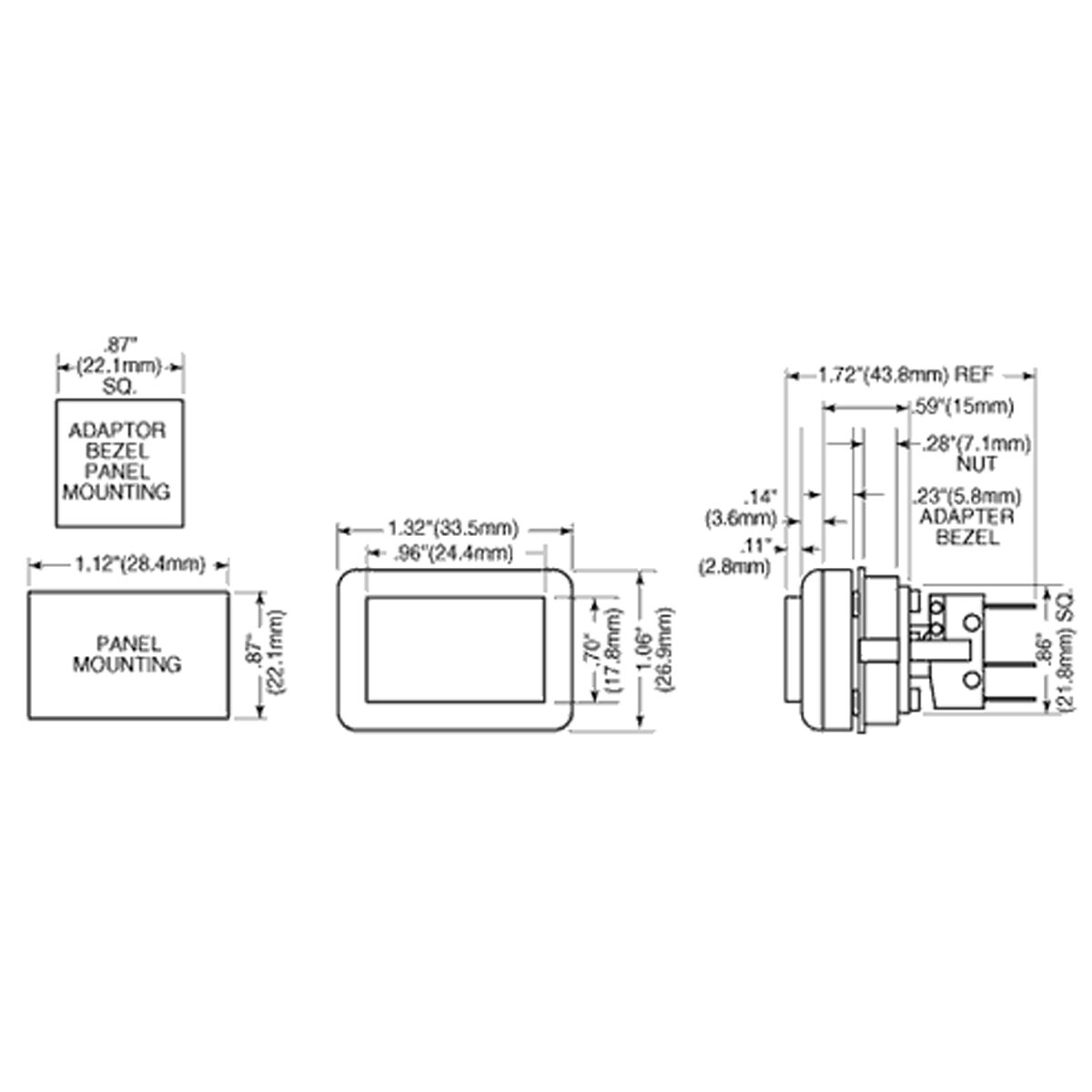

  • Designed to retrofit all existing VLT (Video Lottery Terminals) and draw poker applications using .87"/22mm square mounting hole.
  • Designed to resist spills and sticking.
  • Designed for high reliability and long life, tested to 10 million+ cycles.
  • Small size, low profile, provides maximum player comfort.
  • Unique design, with separable lamp/switch holder, allows easy lamp changing while holding switch very securely.
  • Full .020"/.5mm Thickness on lamp terminals holds lamp connectors securely.
  • Contacts for lamp base are two-legged to assure reliable contact with lamp.
  • .062" grounding terminal is optional.
  • Gold contact subminiature .110 terminals microswitch fitted as standard.
  • 6.3V, T-13/4 wedge base lamp is standard.
  • 14V, #73 or 28V, #85 lamps optional.
  • White legend and clear lens cap fitted as standard.
  • Additional colors of legend and lens caps are available.
  • Custom legend lettering designs and artwork available at nominal charge.
  • Translucent color bezel available (57-8000-XX).
  • Identification Key.
  • Posi-Lock lampholder
Specifications below:
