CPI Talos T702-U7M Dollar Bill Validator $1-$20's 500 Stacker Mars MEI American Changer

$749.00
Product Code: 66648
UPC Code: 840639177267
Condition: New
Brand: American Changer
Lead Time (Days): 10
Estimated Arrival: 13 - 16 Business Days
Stock Status: Special Order
Reset Selected Options (Show All Images)
Back

CPI Talos T702-U7M Dollar Bill Validator $1-$20's 500 Stacker - AC9003.7-500


CPI Talos T702-U7M Validator accepting $1-$20’s with 500 Note Stacker (formally MARS/MEI).

With the Talos note validator, CPI presents the next generation of bill acceptance for the vending industry. Talos is the first of its kind to be equipped for connectivity and mobile diagnostics. CPI Synq enables at-machine diagnostics, troubleshooting, and configuration.

An enhancement of the legacy Series 2000 platform, the Talos bill validator combines MEI VN reliability and performance, but 2x faster. It delivers increased throughput for higher revenue during peak hours. Talos features an enhanced sensor platform, increased speed, and industry-leading fraud protection.

Benefits:

  • Superior fraud protection. Enhanced sensor platform for 10x greater note coverage and recognition
  • Faster transaction speed. 2x quicker than the Series 2000
  • Built on a proud legacy. Maintains common and understood components and functionality with the Series 2000
  • Easy updates and configuration. Reduce at-machine update time with USB connectivity
  • Decrease service calls and increase machine uptime. Powered by CPI Synq module compatibility


American Changer part number AC9003.7-500. This is a MDB Valiator.

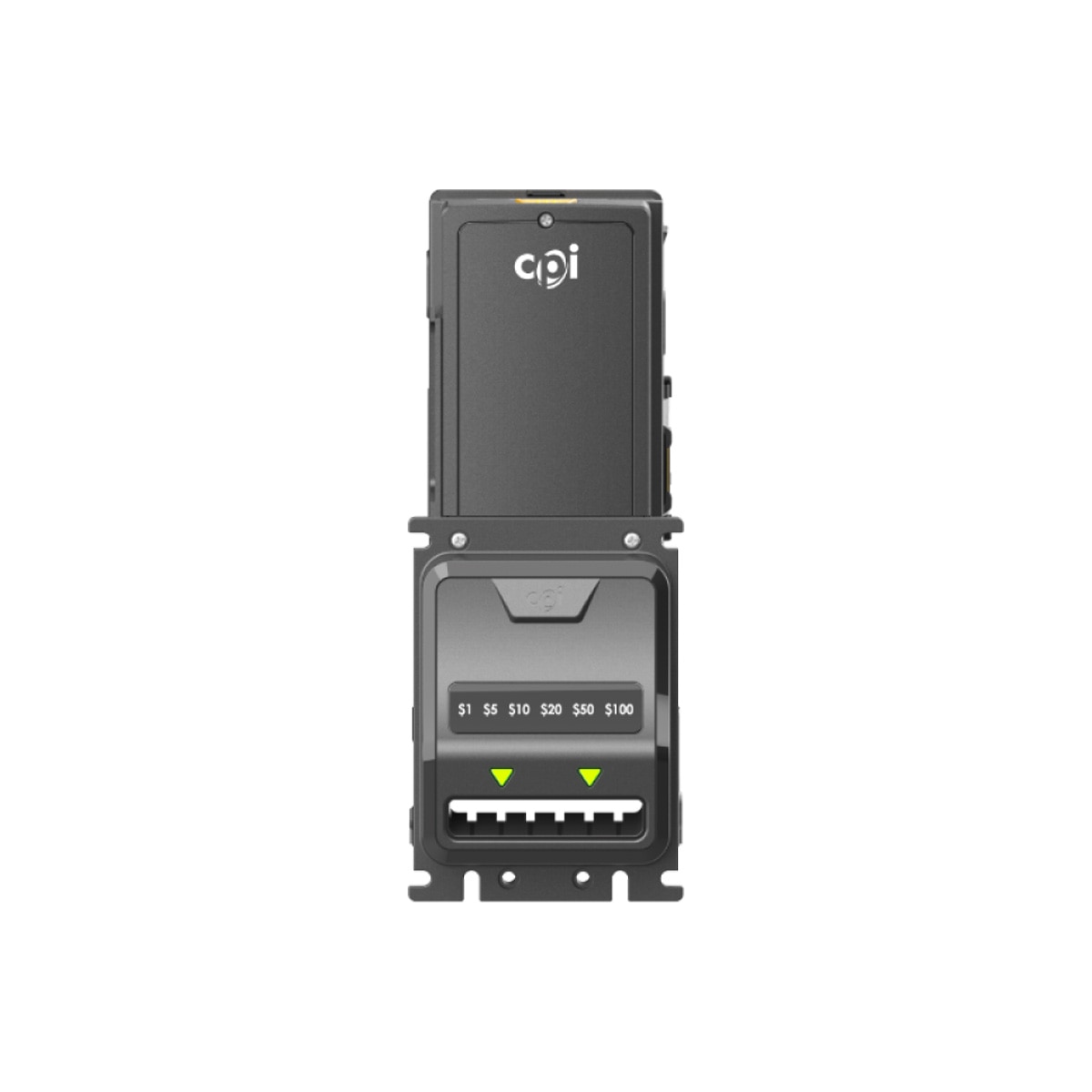

*Please note – the image shows accepting $1-$100. The model only accepts $1-$20’s.*

Specifications:
Acceptance Rate
95% or greater for $1, $5, $10, $20, $50 and $100, at nominal
conditions.
Bill Insertion
Lengthwise, four way (Face up/down, either direction).
Transaction Speed
Approximately 2.5 seconds – from bill insertion to completed
bill-stacking.
Environment
• Operating Temperature: -15C to 60C
• Storage Temperature: -40C to 70C
• Humidity: 5% to 95% relative humidity (non-condensing),
maximum relative humidity of 50% at extreme temperatures.
Interfaces
ILLP, NILLP, MDB, NISR, IP, NIP, EBDS, NIP+
Power Sources
90 to 135 VAC, 60Hz or 18 to 28 VAC, 60Hz,
22VDC to 45VDC or 12VDC
Power Consumption
• Standby: 5 Watts
• Acceptance: 10 Watts
• Full Stack Max: 50 Watts
Shipping Weight
Four Pounds
Escrow
One bill


Compatible with following American Changer products:

AC1001, AC1002, AC101, AC105, AC2000, AC2001, AC2002, AC2002.1, AC2005, AC2006, AC2007, AC2009, AC201, AC205, AC2207, AC2221, AC2225, AC250, AC250-CRR, AC6000, AC6003, AC6007, AC7702, AC7705, AC7802, AC7805, AC8002, AC8004, AC8005, AC8009, AC8225
Specifications below:
Weight (lbs.): 4.5
GRG sells only the highest quality products. This manufacturer offers a 1 year limited warranty on parts and labor and a 2 year limited warranty on bill validators. If you have questions, concerns, or would like more details about this warranty, please give us a call and we will be happy to help.
