Bally Rectifier Board for Early Bally and Stern Pinball Machines

(0) No Reviews yet
$127.89

Product Code: 50609
UPC Code: 840639125176
Condition: New
Brand: Williams Bally
Stock Status: Out of Stock

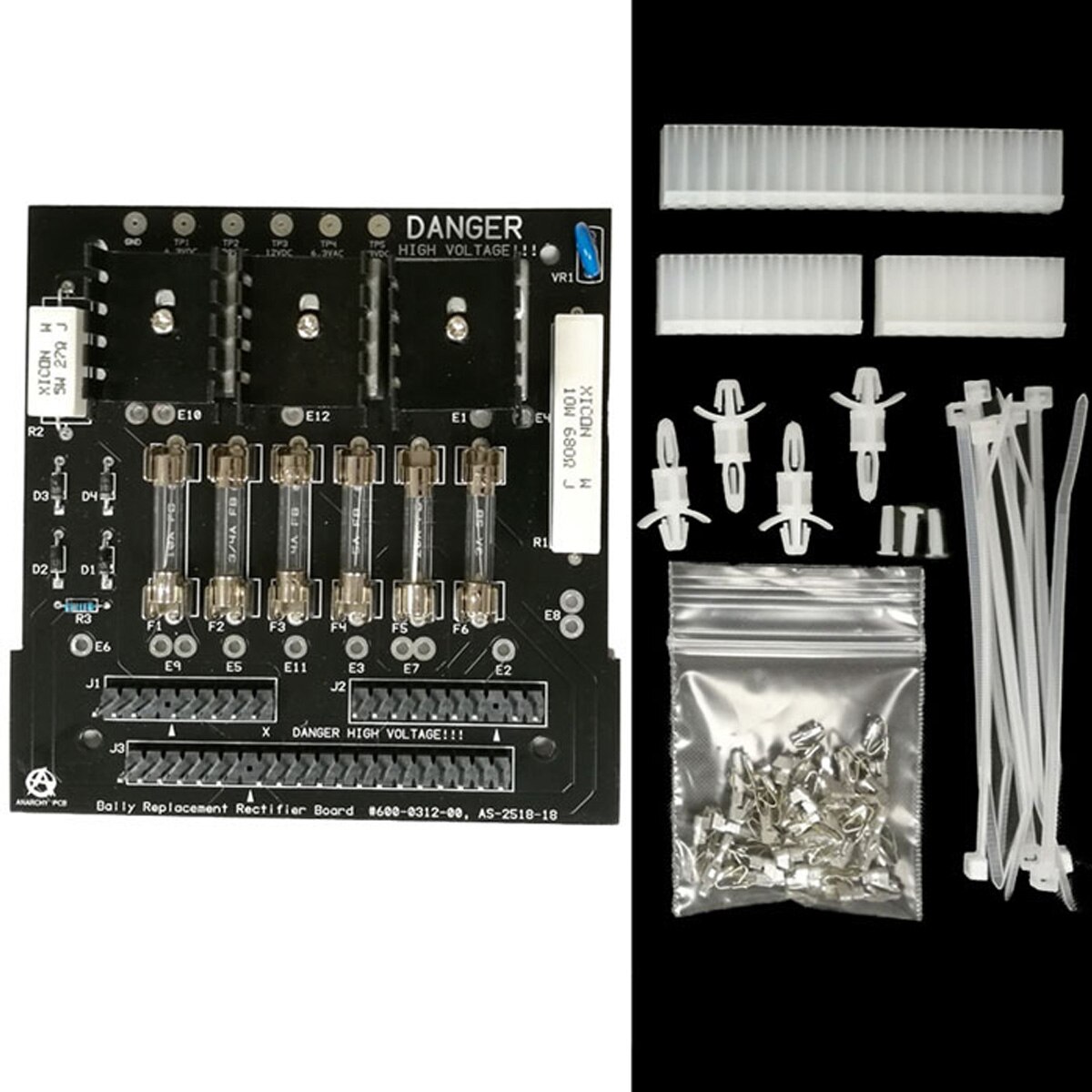

Bally Rectifier Board for Early Bally and Stern Pinball Machines
  • Works with Stern TA 100 and Bally AS-2518-18, AS-2518-49 boards.
  • Drop in replacement rectifier board.
  • LEDs are provided for each power supply voltage.
  • Heat sinks are provided for all three bridge rectifiers.
  • Top mounted heavy duty 35 amp bridge rectifiers for added reliability.
  • Through hole design for easier soldering and serviceability.
  • All PinHead Rectifier boards are professionally wave soldered using high quality ultrapure solder designed by Kester, the leading manufacturer for solder. This greatly improves the aesthetics and reliability of all solder joints.
  • High temperature 170tg FR-4 material is used along with extra thick copper and flooded ground plains, which helps reduce noise and dissipate heat.
  • High temperature polycarbonate fuse cover to protect you from high voltages.
  • Meets current ANSI/IPC-2221 specifications.
  • Includes an additional ground terminal, which provides an alternate path for the ground plain and relieves stress from the existing E8 ground connection.
  • Increased the resistance value of the power resistors to decrease operating temperature. Also increased the power rating of R2 from 10 watts to 15 watts.
  • Every board has clearly marked E connections on both sides of the board for easy installation. Some soldering is required for these connections.
  • Includes an accessory pack with all of the necessary parts for mounting the new board and rebuilding those old worn out and burnt connectors.
  • Includes all fuses.
  • There is a crimp tool available for $29.95 that makes replacing the terminals easier. Please email us for information on this item. (Game Room Guys Part No. 22300)
  • Compatible with Future Spa, KISS and Space Invaders

Specifications below:

  • Weight (lbs.): 0.6
  • Shipping Dimensions: 12" x 6" x 6"
Game Room Guys sells only the highest quality products. This manufacturer offers a 30 day limited warranty. If you have any questions, concerns, or would like more details about this warranty, please give us a call and we will be happy to help.
